Ames 6" 3000SS-OSY-CFM Double Check Detector Assembly
Details
Details

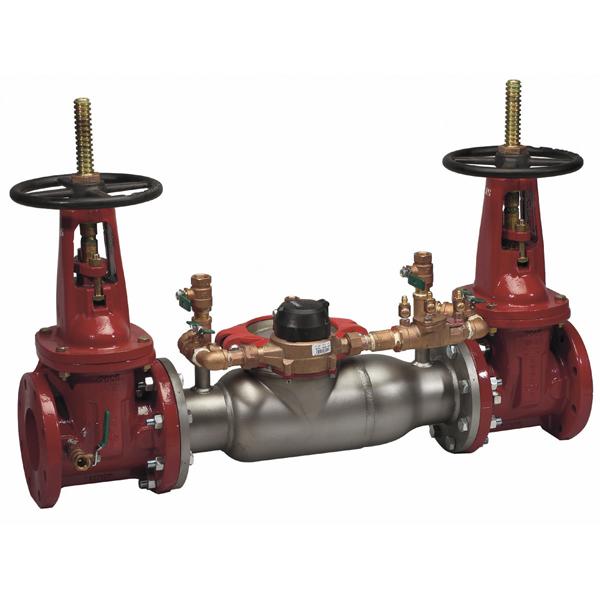

Ames 3000SS double check detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure. The assembly has a lightweight stainless steel body, outside stem and yoke resilient seated gate valves, captured spring check valves, and four test cocks. It comes furnished with a cubic feet per minute meter to detect underground leaks and unauthorized water use.
The Ames 3000SS comes with a 3/4" 2000BM3 for the bypass assembly.
Manufacturer: Ames
Size: 6 Inch
Product model: 3000SS
Gate Valve Type: OSY Valve
Size: 6 Inch
Product model: 3000SS
Gate Valve Type: OSY Valve
Installation and Maintenance Instructions
Specification Sheet
2000SS & 3000SS 2.5"- 6"
