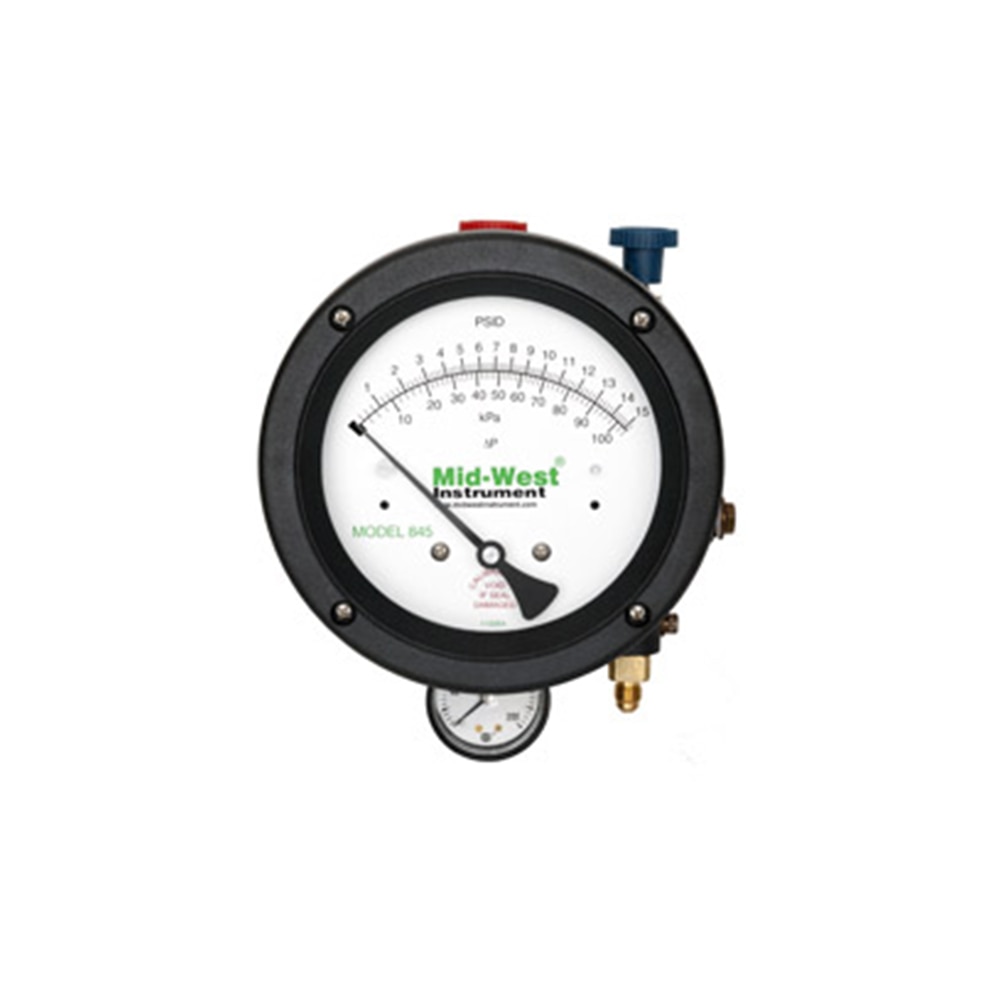

Mid-West Instrument 845-2 (2 Valve Backflow Test Kit)

SKU: 845-2
$805.00

Functions and Applications:
Model 845-2 (2) valve kit provides the capability for testing all brands of reduced pressure principle, pressure vacuum breaker and double check valve backflow prevention assemblies.

∆P RANGE: 0-15 PSID / 0-100 KPA

Specifications

  • Gauge Type Diaphragm Differential Pressure
  • Dial Size & Range (4 1/2") 0-15 PSID / 0-100 KPA
  • Differential Pressure Accuracy ± .2 P.S.I.D. (Descending)
  • Working Pressure: 200 PSIG
  • Body Material: Glass Reinforced Engineering Thermoplastic.
  • Wetted Internals: EP Elastomers, Brass and 316 S.S. Metal Parts
  • Line Pressure Gauge: 1 1/2" 0-200 PSIG
  • Hoses & End Fittings: Buna-N jacket and liner. Schrader 1/4" brass coupler -
  • Hose Length: Three (3) each / 5' long (color-coded).
  • Adaptor Fittings: (3) sets of brass fittings provided for hookup to all standard size test cocks
  • Gauge Weight: 2.9lbs / 1.3kg
  • Case: Durable Molded Plastic
  • Size: 18 1/2" L x 9"W x 9 3/4" H
  • Temperature Limitations: Maximum 150°F/65°C

       FREEZING TEMPERATURES MUST BE AVOIDED


Details

Details

Functions and Applications:
Model 845-2 (2) valve kit provides the capability for testing all brands of reduced pressure principle, pressure vacuum breaker and double check valve backflow prevention assemblies.

∆P RANGE: 0-15 PSID / 0-100 KPA

Specifications

  • Gauge Type Diaphragm Differential Pressure
  • Dial Size & Range (4 1/2") 0-15 PSID / 0-100 KPA
  • Differential Pressure Accuracy ± .2 P.S.I.D. (Descending)
  • Working Pressure: 200 PSIG
  • Body Material: Glass Reinforced Engineering Thermoplastic.
  • Wetted Internals: EP Elastomers, Brass and 316 S.S. Metal Parts
  • Line Pressure Gauge: 1 1/2" 0-200 PSIG
  • Hoses & End Fittings: Buna-N jacket and liner. Schrader 1/4" brass coupler -
  • Hose Length: Three (3) each / 5' long (color-coded).
  • Adaptor Fittings: (3) sets of brass fittings provided for hookup to all standard size test cocks
  • Gauge Weight: 2.9lbs / 1.3kg
  • Case: Durable Molded Plastic
  • Size: 18 1/2" L x 9"W x 9 3/4" H
  • Temperature Limitations: Maximum 150°F/65°C

       FREEZING TEMPERATURES MUST BE AVOIDED


Manufacturer: Midwest instrument
