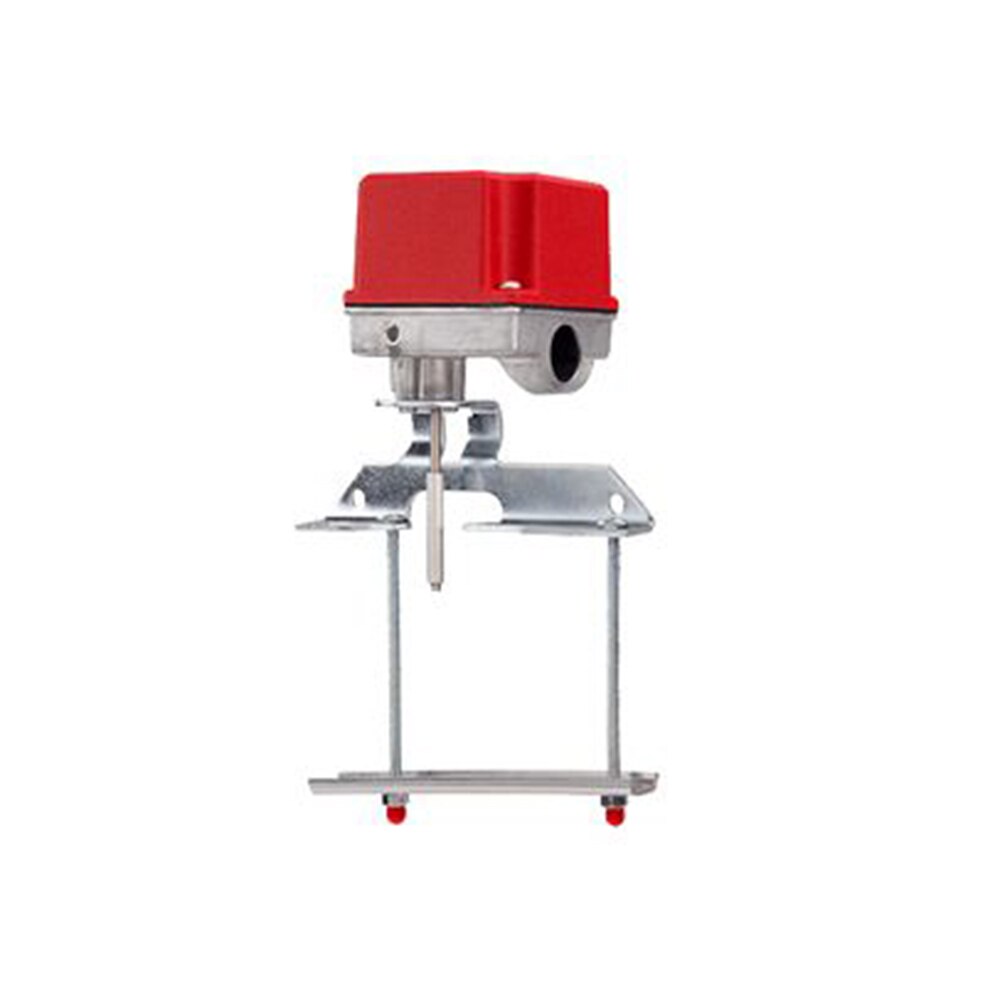

System Sensor OSY Valve Supr Switch (Double)(OSY-2)
Details
Details
The System Sensor OSY2 is used to monitor the open position of an Outside Screw and Yoke (OS&Y) type gate valve. Features
• NEMA 3R-rated enclosure
• User-friendly mounting bracket fits newer valve yokes
• Single side conduit entry does not require right angle fittings
• Adjustable length actuator eliminates the need for cutting the shaft
• Accommodates up to 12 AWG wire
• Three position switch monitors vandal and valve close signals
• Two SPDT contacts are enclosed in a durable terminal block for added strength
• 100 percent synchronization activates both alarm panel and local bell simultaneously
• NEMA 3R-rated enclosure
• User-friendly mounting bracket fits newer valve yokes
• Single side conduit entry does not require right angle fittings
• Adjustable length actuator eliminates the need for cutting the shaft
• Accommodates up to 12 AWG wire
• Three position switch monitors vandal and valve close signals
• Two SPDT contacts are enclosed in a durable terminal block for added strength
• 100 percent synchronization activates both alarm panel and local bell simultaneously
Manufacturer: Argco
